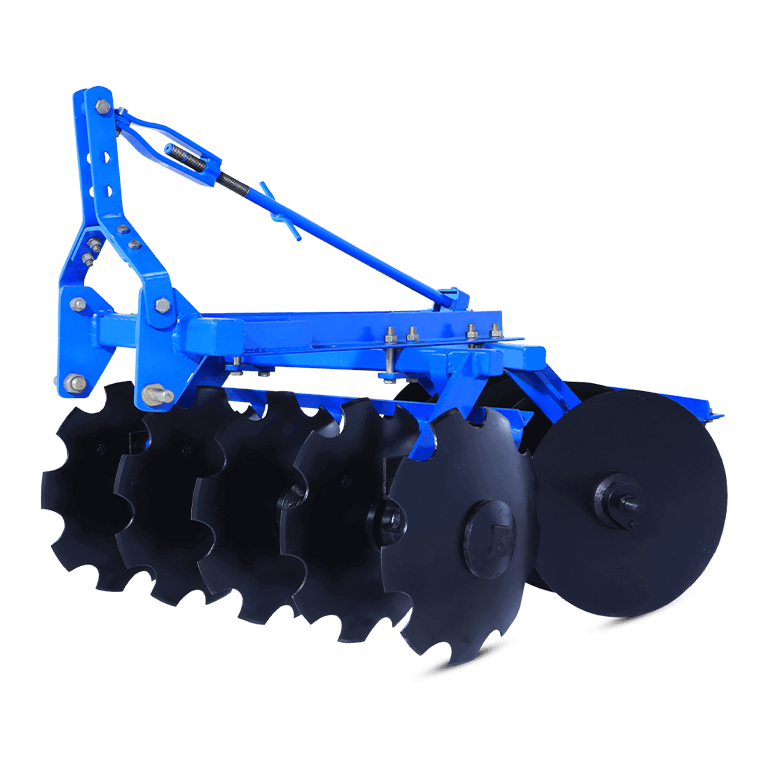

Engineered to break, level and aerate the soil with precision, the disc harrow is built for productivity. Constructed with durable boron steel discs and a sturdy frame, it delivers consistent performance across various field conditions. This reliable implement enhances soil structure for improved farming outcomes.
Disclaimer : All specifications and images are subject to change.
SALIENT FEATURES
Robust angle box frame construction.
Boron steel discs for enhanced durability.
Adjustable disc spacing for versatile soil preparation.
High-carbon steel bearing hubs for smooth operation
Effective in breaking up and leveling soil.
Designed for heavy-duty field operations.
SPECIFICATIONS
| Model | FP DH 10 |
| Frame (mm) | 60 X 60 X 5 |
| Frame Type | C-Channel |
| Gang Bolt / Axle Type (mm) | 28 (Solid Square Rod) |
| No. of Discs | 10 |
| Type of Disc / Blade | Plain / Notched Disc (Optional) |
| Disc Material | Boron Steel |
| Disc Diameter (mm) | 460 Diameter & Thickness 3 |
| Width of Cut (mm Approx.) | 920 |
| Discs Spacing (mm) | 228 |
| Bearing Hubs (Nos.) | 4 (UC-210) |
| Weight (Kg-Approx.) | 260 |
| Tractor Power (HP) | 20-35 HP |
