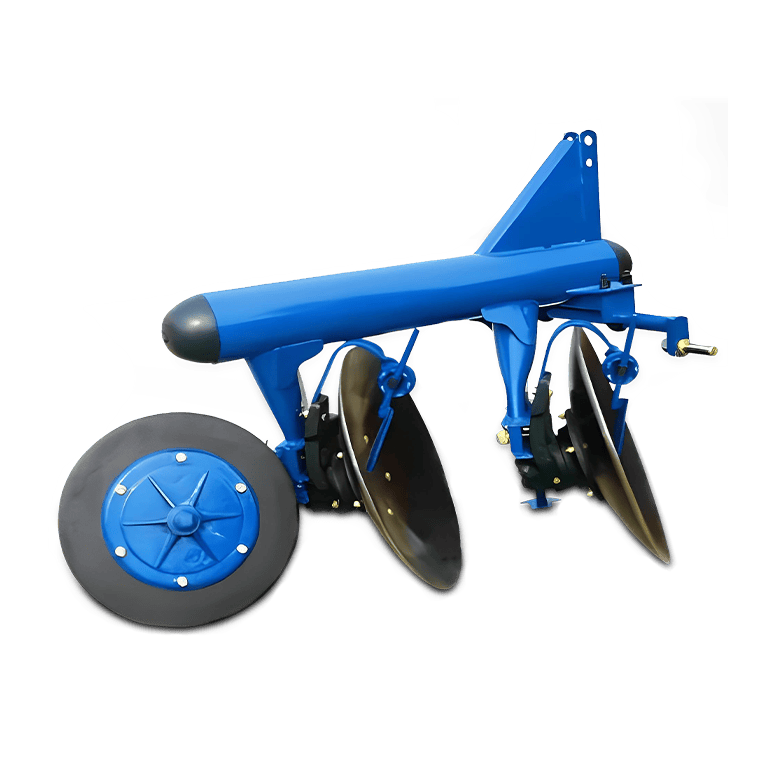

The disc plough is designed to handle tough soil conditions with ease. Its high-quality boron steel discs ensure deep soil penetration and effective turnover. Built for reliability and efficiency, it helps unlock the full potential of the land while maintaining excellent durability.
Disclaimer : All specifications and images are subject to change.
SALIENT FEATURES
Heavy-duty frame with boron steel discs.
Efficient soil penetration and turnover.
Adjustable disc angles for varied soil conditions.
High durability for tough field conditions.
Suitable for primary tillage and breaking hard soil.
SPECIFICATIONS
| Model | FP DPCS2 |
| Frame (mm) | Angle Box Frame 65 X 65 X 8 |
| Pipe (mm) | 60 X 60 X 6 |
| Axle Type | Forged Spindle CNC Machined |
| No. of Discs | 2 |
| Type of Disc / Blade | Boron Steel / High Carbon Steel |
| Disc Diameter (mm) | 610 Thickness 3-4 mm |
| Disc Spacing (mm) | 500-570 (22 Approx.) Adjustable |
| Bearing Hubs | 2 |
| Mounted Category | CAT - I |
| Width of Cut (mm-Approx.) | 500-550 |
| Weight (Kg-Approx.) | 190 |
| Tractor Power (HP) | 22-30 HP |
